Malformed URI when using Cube Updater

Tom S
Updated

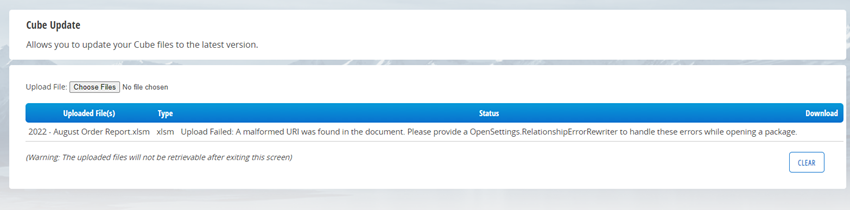

Error message: Upload Failed: A malformed URI was found in the document. Please provide a OpenSettings.RelationshipErrorRewriter to handle these errors while opening a package.

Malformed URI in document


Issue: Malformed URI in Document

Description

Encountering an error message during Cube Updater file upload: "Upload Failed: A malformed URI was found in the document. Please provide an OpenSettings.RelationshipErrorRewriter to handle these errors while opening a package." This error often arises due to invalid hyperlinks, especially when email addresses are transformed into hyperlinks in Excel.

Solutions

Please try the following resolutions in order:

  1. Convert Incompatible Hyperlinks to Text in Excel:

    • Open the file in Excel.

    • Identify and convert incompatible hyperlink values to plain text.

    • Save the modified file.

    • Reupload the file into the Cube Updater.

  2. Mass Remove Hyperlinks in Excel:

    • Within each tab, select all (Ctrl + A), navigate to the Home tab, click "Clear," and then choose "Remove Hyperlinks" to eliminate any unwanted hyperlinks, especially linked email addresses.

  3. Check for Broken or Incompatible Links:

    • Click the "Edit Links" button under the Data tab in Excel to identify and fix broken or incompatible links within the file.

  4. Manage External Links and Connections:

    • Minimize the use of external links, such as formulas referencing other files.

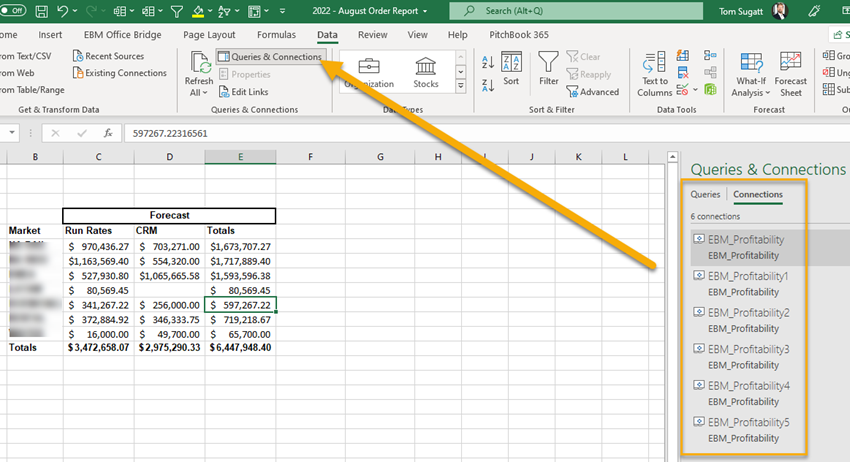

    • Ensure only necessary External Data Model (EBM) connections are present.

    • Remove any duplicate EBM connections.

  5. Try Repairing the File via MS Office:

    • Utilize Microsoft Office's repair functionality to address any underlying issues with the file.

  6. Quit Excel and Restart Your Machine:

    • Close Excel and restart your computer to clear any temporary issues.

  7. Explore Additional Code Fixes:

    • Refer to this GitHub link for potential code fixes in Excel and on your machine that may resolve the issue.

  8. Rebuild the File from Scratch:

    • As a last resort, consider rebuilding the file entirely.

By following these solutions, you should be able to address the "Malformed URI in Document" issue with the Cube Updater efficiently and effectively.
